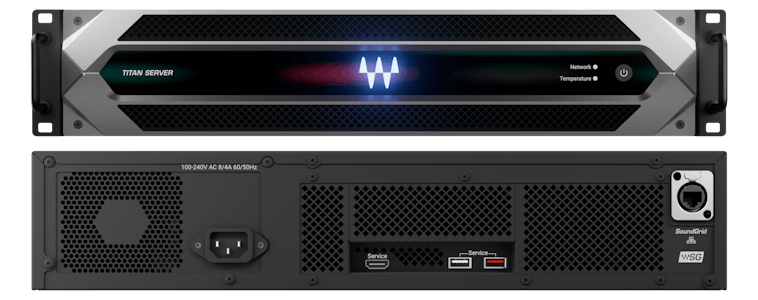

Titan SoundGrid Server | Hardware

SuperRack Benchmarks

The table below indicates the number of plugins that can be inserted into StudioRack and loaded to the Titan SoundGrid Server before the system fails to play audio fluently (clicks, dropouts, corruption).

Configuration (all stereo Racks)	Plugins	Sample Rate	SGS buffer size	Results
Configuration (all stereo Racks)	Plugins	Sample Rate	SGS buffer size	CPU Peak	CPU Average	Instances
16 Racks	C6	48 kHz	40	30	29	128
	CLA2A	48 kHz	40	12	11	128
	DBX160	48 kHz	40	59	58	128
	Ren Channel	48 kHz	40	8	7	128
	SSL E-Channel	48 kHz	40	9	8	128
	H-Reverb	48 kHz	40	84	54	48
	H-Delay	48 kHz	40	9	8	128
	Ren-Verb	48 kHz	40	19	17	128
	F6	48 kHz	40	27	17	128
	J37	48 kHz	40	52	50	128
32 Racks	C6	48 kHz	40	60	58	256
	CLA2A	48 kHz	40	24	22	256
	DBX160	48 kHz	40	85	84	190
	Ren Channel	48 kHz	40	15	14	256
	SSL E-Channel	48 kHz	40	17	16	256
	H-Reverb	48 kHz	40	84	50	48
	H-Delay	48 kHz	40	17	16	256
	Ren-Verb	48 kHz	40	40	37	256
	F6	48 kHz	40	44	34	256
	J37	48 kHz	40	84	82	220
64 Racks	C6	48 kHz	40	85	84	408
	CLA2A	48 kHz	40	41	40	512
	DBX160	48 kHz	40	83	81	205
	Ren Channel	48 kHz	40	27	25	512
	SSL E-Channel	48 kHz	40	30	29	512
	H-Reverb	48 kHz	40	84	54	49
	H-Delay	48 kHz	40	31	29	512
	Ren-Verb	48 kHz	40	84	76	480
	F6	48 kHz	40	70	60	512
	J37	48 kHz	40	85	82	234

Configuration (all stereo Racks)	Plugins	Sample Rate	SGS buffer size	Results
Configuration (all stereo Racks)	Plugins	Sample Rate	SGS buffer size	CPU Peak	CPU Average	Instances
16 Racks	C6	96 kHz	80	55	54	128
	CLA2A	96 kHz	80	22	21	128
	DBX160	96 kHz	80	49	47	128
	Ren Channel	96 kHz	80	14	13	128
	SSL E-Channel	96 kHz	80	15	15	128
	H-Reverb	96 kHz	80	82	55	45
	H-Delay	96 kHz	80	21	19	128
	Ren-Verb	96 kHz	80	36	33	128
	F6	96 kHz	80	43	33	128
	J37	96 kHz	80	38	37	128
32 Racks	C6	96 kHz	80	83	81	200
	CLA2A	96 kHz	80	43	42	256
	DBX160	96 kHz	80	84	85	232
	Ren Channel	96 kHz	80	28	27	256
	SSL E-Channel	96 kHz	80	30	29	256
	H-Reverb	96 kHz	80	85	54	45
	H-Delay	96 kHz	80	51	40	256
	Ren-Verb	96 kHz	80	79	73	256
	F6	96 kHz	80	74	66	256
	J37	96 kHz	80	76	74	256
64 Racks	C6	96 kHz	80	84	83	200
	CLA2A	96 kHz	80	76	75	512
	DBX160	96 kHz	80	85	84	232
	Ren Channel	96 kHz	80	49	48	512
	SSL E-Channel	96 kHz	80	54	52	512
	H-Reverb	96 kHz	80	85	57	45
	H-Delay	96 kHz	80	73	71	512
	Ren-Verb	96 kHz	80	81	75	286
	F6	96 kHz	80	85	76	343
	J37	96 kHz	80	85	82	322

The maximum number of plugins that can be tested given system limitations is 512 (64 racks) for either mono or stereo. Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficiently at 44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend on sample rates.

* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter.

** Plugin introduces high latency. Click here for a latency chart of all Waves plugins.

StudioRack Benchmarks

The table below indicates the number of plugin racks and plugins that can be inserted into SuperRack and loaded to the Titan SoundGrid Server before the system reaches DSP overload (85%) or fails to play audio fluently (clicks, dropouts, corruption).

Plugin	44.1kHz	96kHz
API 2500 (mono)	1024	1024
API 550 (mono)	1024	1024
API 560 (mono)	320	307
AudioTrack (mono)	1024	1024
C6 Multiband Compressor (mono)	398	175
CLA-2A Compressor / Limiter (mono)	1024	552
CLA-3A Compressor / Limiter (mono)	955	447
CLA-76 Compressor / Limiter (mono)	1024	791
CLA MixHub (mono)	85	86
CLA MixHub Lite (mono)	157	157
dbx® 160 Compressor / Limiter (mono)	228	238
DeEsser (mono)	1024	1024
Dorrough Stereo (stereo)	512*	512*
H-Comp Hybrid Compressor (mono)	1024	985
H-Delay Hybrid Delay (mono)	1024	557
H-EQ Hybrid Equalizer (mono)	352	316
H-Reverb Hybrid Reverb (stereo)*	10*	6*
IR1 Convolution Reverb (stereo)*	21*	19*
IR-Live Convolution Reverb (stereo)*	119*	72*
InPhase (mono)**	1024	1024
J37 Tape (mono)	238	316
Kramer HLS Channel (mono)	494	171
Kramer Master Tape (mono)	316	151
L2 Ultramaximizer (mono)	1024	950
LoAir (mono)	1024	877
MaxxVolume (mono)	1024	1024
NLS Non-Linear Summer (mono)	710	319
PuigChild Compressor (mono)	849	395

Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficiently at 44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend on sample rates.

* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter in the eMotion ST mixer.

** Plugin introduces high latency. Click here for a latency chart of all Waves plugins.

eMotion LV1 Benchmarks

The table below shows the server’s CPU peaks (in percentages) when used with the eMotion LV1 mixer (v10.0.65.98), SoundGrid Server firmware (v10.3.0.92 beta), and v11.0.0.98 plugins, given different server latency settings and different LV1 channel counts.

Sample Rate	SGS buffersize	Configuration (all mono)	Mode	Plugins
Sample Rate	SGS buffersize	Configuration (all mono)	Mode	Plugins	Avarage %	Peak %
48 kHz	40	16 channels	Latency	none	5	6
		16 channels	DSP		5	6
		32 channels	Latency		8	8
		32 channels	DSP		6	8
		64 channels	Latency		8	12
		64 channels	DSP		8	12
		16 channels	Latency	D5, F2, Q4 on all input aux and bus channels	10	11
		16 channels	DSP		9	10
		32 channels	Latency		17	18
		32 channels	DSP		14	16
		64 channels	Latency		21	25
		64 channels	DSP		19	22

Sample Rate	Configuration (all mono)	Mode	Plugins	i7 9gen
Sample Rate	Configuration (all mono)	Mode	Plugins	Avarage	Peak
96 kHz	16 channels	Latency	none	5	6
	16 channels	DSP		4	6
	32 channels	Latency		8	9
	32 channels	DSP		7	9
	64 channels	Latency		10	13
	64 channels	DSP		9	11
	16 channels	Latency	D5, F2, Q4 on all input aux and bus channels	15	17
	16 channels	DSP		13	14
	32 channels	Latency		27	29
	32 channels	DSP		22	25
	64 channels	Latency		36	39
	64 channels	DSP		32	34

CPU: Intel^® Core i9-10900K

RAM: 16 GB

Motherboard: Gigabyte W480M

LAN Card: Intel^® I225-LM

Dimensions

Length: 48.2 cm / 19 in
Height: 8.8 cm / 3.5 in
Depth: 39.2 cm / 15.4 in
Device Weight: 7.0 kg / 15.4 lb
Package Weight: 8.9 kg / 19.6 lb

Power Consumption (100~240VAC 50/60Hz):

140W

Operating Environment temperature range:

50^° to 95^°F / 10^° to 35^°C

Max Environment temperature:

104^°F / 40^°C

Titan SoundGrid Server (X10 onwards) is not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10

Titan SoundGrid Server A&E Specs:

Titan SoundGrid Server
