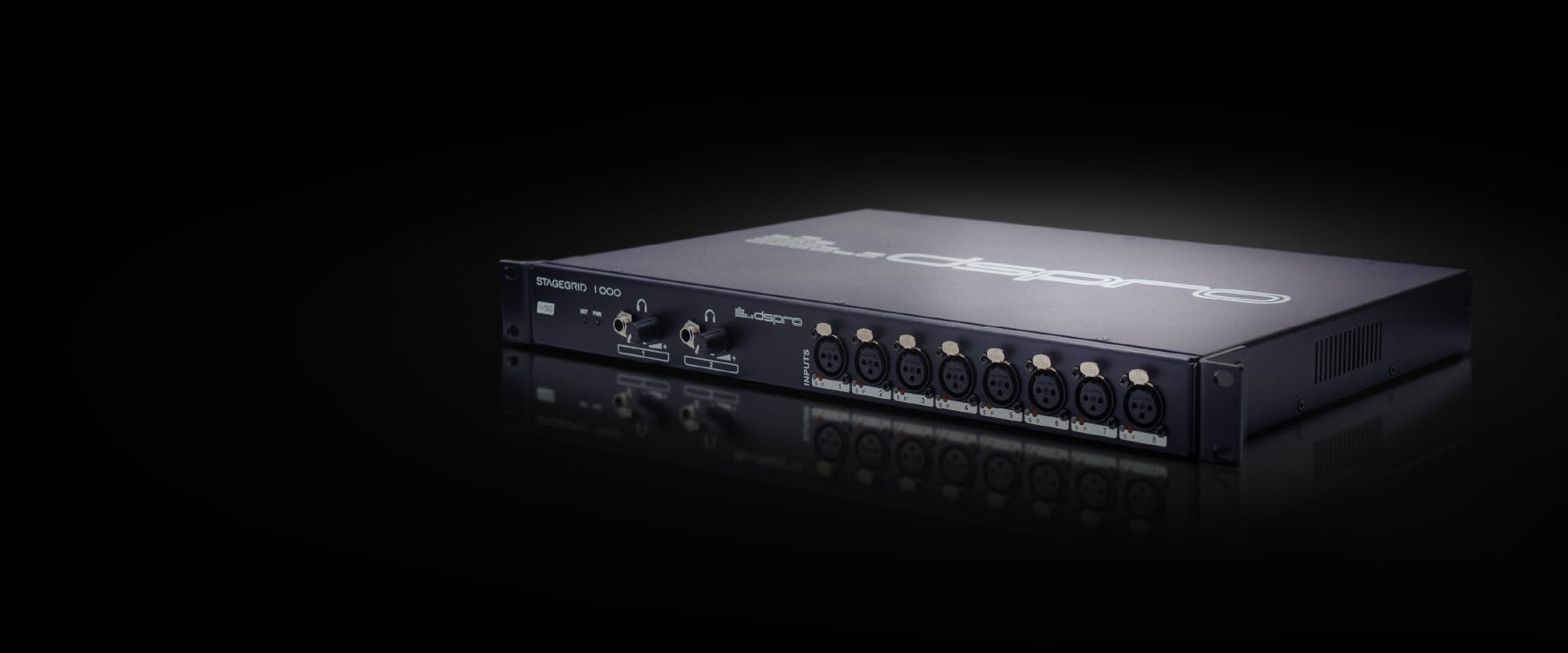

Compact 10 In/8 Out SoundGrid Expansion Unit
With 8 digitally controlled mic/line ins, 4 balanced analog outputs, and AES/EBU stereo digital I/O, this 1U rack unit offers the perfect balance between size and functionality. Delivering exceptional, no-compromise sound quality and reliability, it’s ideal for expanding the eMotion LV1 mixer.
Whether placed by your console for more ins and outs monitors or at FOH, or on stage to expand ins and outs for performers, this versatile unit handles the most demanding live mix environments.
Setups
In the setup diagram below, on-stage instruments, microphones, and headphones are connected to the StageGrid 4000 and StageGrid 1000 units, which are remotely controlled from the LV1 mixer at front-of-house.
An additional StageGrid 1000 unit is connected at FOH to provide the FOH engineer with headphone outputs and talkback microphone inputs. Incoming audio is processed on a SoundGrid Server and then outputted to stage-monitors, stage headphones, the PA system, and FOH headphones.
For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
