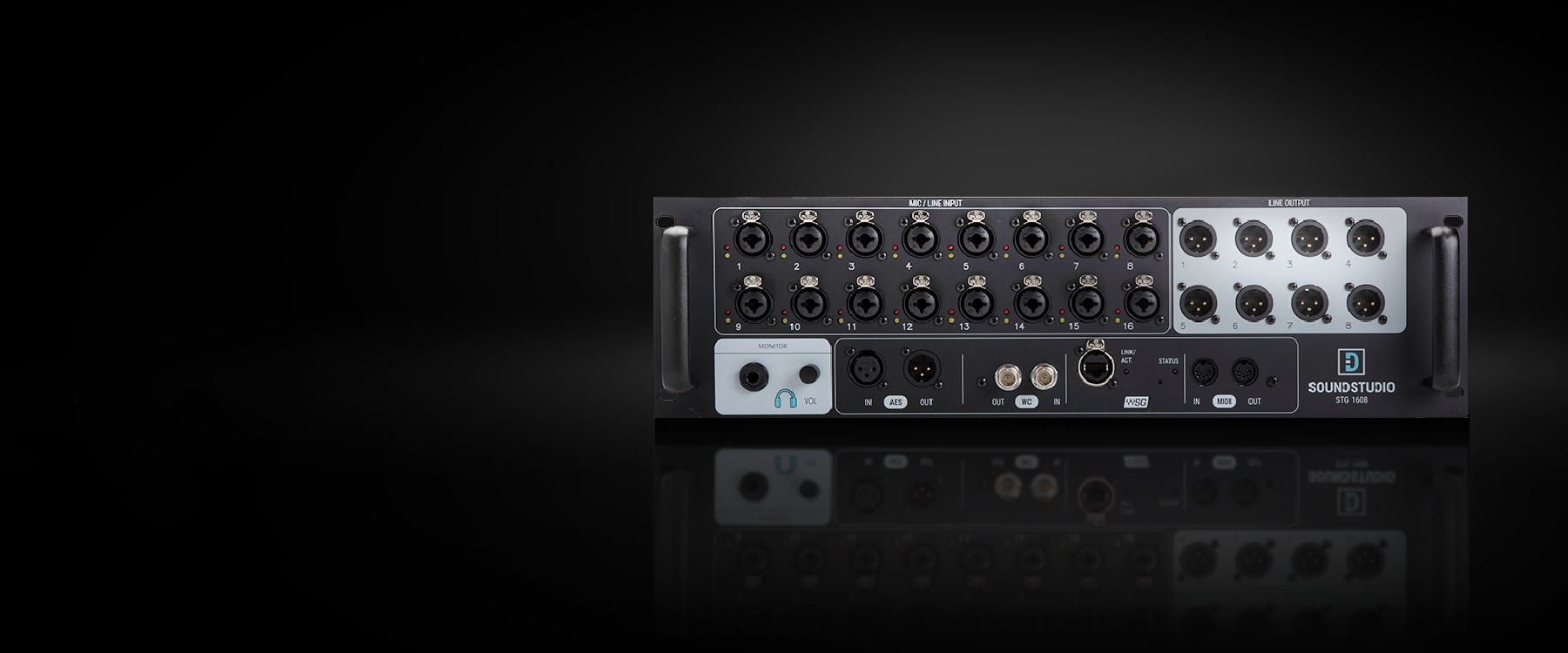

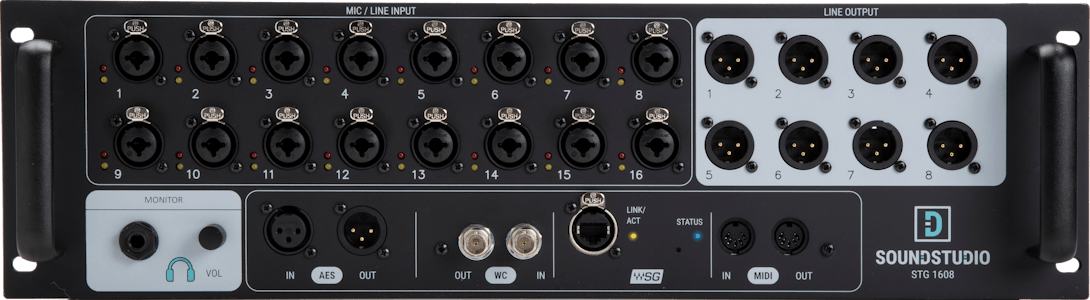

SoundStudio STG-1608

XLR Input

• Input Gain: Adjustable from 0 dB to 60 dB in steps of 1dB
• Frequency Response:
  +0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain)
  +0/-0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain)
• Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0
• EIN (Gain 60, 150 ohms) -128 dBu A weighted
• THD+N (Measured at 1 kHz @ +4dBu, Gain = +20) 0.0023%
• Phase Response: +/-10 Deg 20 Hz to 20 kHz
• Input impedance : 2k ohms
• 48V phantom power available per input

TRS Input

• Input Gain: Adjustable from 0 to 60 dB in steps of 1dB
• Frequency Response:
  +0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain)
  +0/-0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain)
• Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0
• EIN (Gain 60, 150 ohms) -128 dBu A weighted
• THD+N (Measured at 1 kHz @ +4dBu, Gain = +20) 0.0023%
• Phase Response: +/-10 Deg 20 Hz to 20 kHz
• Input impedance: 10k ohms

XLR Balanced Outputs

• Selectable maximum output level: +18 dBu or + 24 dBu
• Frequency Response:
  +0/-0.2 dB 16 Hz to 22 kHz @ 48 kHz sample rate
  +0/-0.2 dB 17 Hz to 40 kHz @ 96 kHz sample rate
• THD+N (Measured at 1 kHz, Gain = 0) 0.001%
• Output impedance: 40 ohms

Digital I/O

• AES-3, AES-EBU Stereo Output. Output sample rate 44.1 kHz to 96 kHz
• Word clock input: Standard 5 Volt square wave. 50% duty cycle.
• Word clock output: 1X sample rate Standard 5 Volt square wave. 50% duty cycle.
• Word clock Input: 1X sample rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz.

Headphone Output

1 watt per channel into 32 Ohm headphones.

Power

Universal input power supply 100V-240 VAC, 50/60 Hz, 1.0 Ampere.

Dimensions

19 x 5.1 x 10 inches (482 x 132 x 254 mm))

Weight

15.9 lb (7.2 kg)
