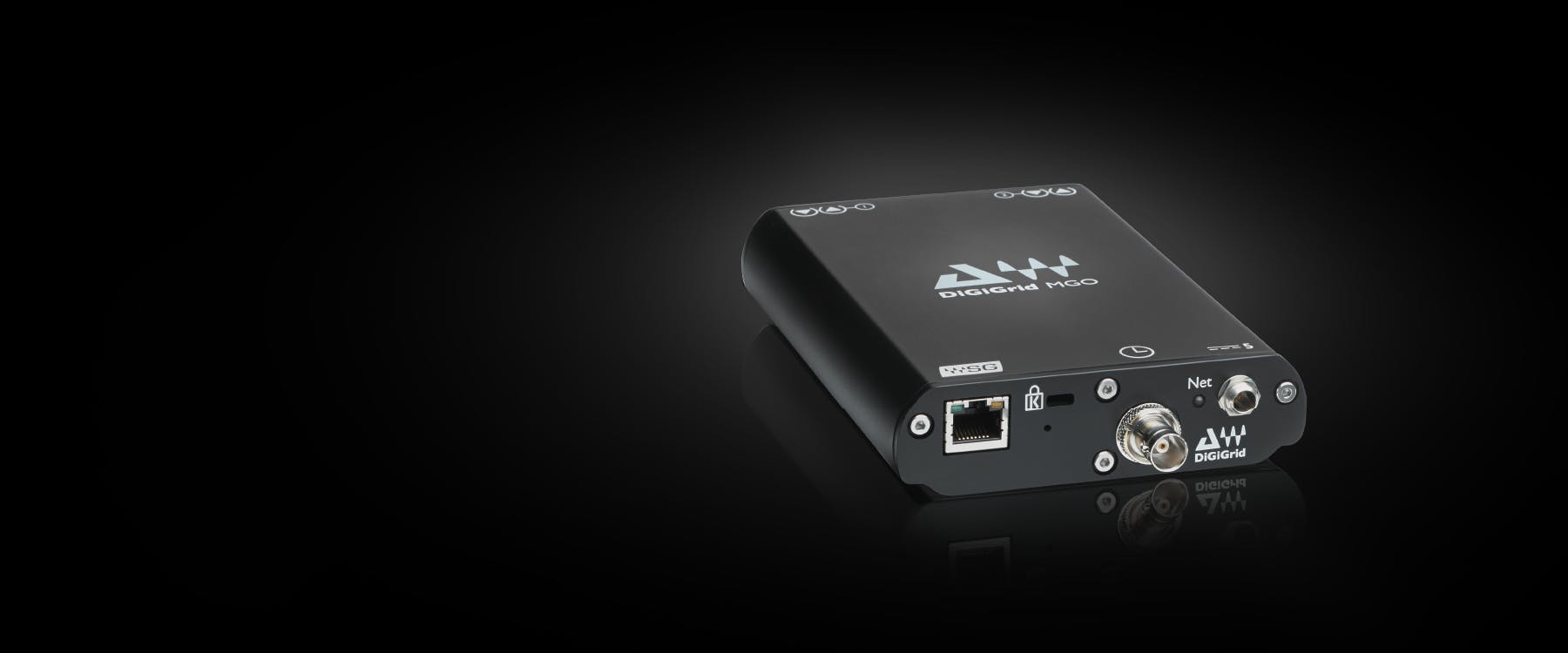

DiGiGrid MGO

Now $2000

ADD TO CART

200000

DiGiGrid products are sold by Waves in the US and Canada. For other regions, please visit: www.digigrid.net.

DiGiGrid MGO Optical MADI interface allows you to connect any MADI-enabled device to the SoundGrid network. Record, process and playback up to 128 channels with Waves and third-party SoundGrid-compatible plugins in high-fidelity at a super low-latency of 0.8 milliseconds! Moreover, the DiGiGrid MGO can record to two computers simultaneously – one for virtual soundcheck, the other for backup.

MADI-to-SoundGrid interface
Plug any MADI-enabled device into SoundGrid
Record, process and playback up to 128 channels
Record to two computers simultaneously

User Guide

Includes
Included In
Platforms
Control Panel
Tech Specs
In Depth

eMotion ST Mixer
SoundGrid Studio Application
StudioRack

DiGiGrid MGO + Extreme Server System

$4780
DiGiGrid MGO + Impact Server System

$2990
DiGiGrid MGO + Server One System

$3690
eMotion LV1 MGO MADI Combo

$4999

Specs

MADI Optical I/O (SFP Optics cartridges)
Supported sample rates: 44.1, 48, 88.2, 96 kHz
112/128 channel I/O @ 48kHz
56/64 channel I/O @ 96kHz
Support for 64chn and 56chn modes
Support for double wire (48k frame) and single wire (96k frame) @ 96kHz
Clock Synchronisation via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SoE), Internal 1 SoundGrid port (RJ45)
Reset switch
Support for channel 57 controls – DiGiCo-specific, will be used to connect a DiGiCo stage rack and control it.

Package Contents

DiGiGrid MGO unit
Universal power adaptor with interchangeable plugs (UK, US, EU, AU) (100-240V)
Ethernet cable: Cat 5e (2 meters)
Registration card

Dimensions

Width: 10.6 cm / 4.17 inches
Height: 14.82 cm / 5.83 inches
Depth: 2.9 cm / 1.14 inches
Device Weight: 0.4 kg / 0.88 lbs

DiGiGrid MGB / MGO Manual DiGiGrid MGB / MGO Quick Setup Guide MultiRack SoundGrid V9.7 for DiGiGrid MGO / MGB TroubleShooter

Mar 02, 2014

DiGiGrid Is a Monster!

For FOH engineer Ken “Pooch” Van Druten, DiGiGrid audio interfaces are an amazing tool for creating an exciting live sound with perfect studio fidelity.

Apr 10, 2016

Inside the Grammy Broadcast Mix Truck

Learn which audio tools and technologies remote broadcast company Music Mix Mobile uses to deliver its live broadcast mix of the annual Grammy Awards.

Scott Pearlman FOH Engineer, Production & Tour Manager

Stone Temple Pilots, Steve Vai, Filter, Black Label Society

“A DiGiGrid MGO optical MADI-to-SoundGrid interface and a SoundGrid DSP server are everything I need for my show. With this setup, I can get the band sounding like it needs to, plus I have easy setup and reliability – unfailingly every night.”

DiGiGrid MGO Control Panel

For controlling and overseeing your DiGiGrid DLI settings and the DLI’s connection with peripheral DigiLink-enabled devices.

Clock settings: source, sample rate, type, status
SMUX and Hi-Speed modes available for 96/88.2 kHz operation
56/64 channel operation modes
Save and load presets of unit settings
Save your settings along with your Waves and SoundGrid host application sessions

DiGiGrid MGB / MGO Manual DiGiGrid MGB / MGO Quick Setup Guide

DiGiGrid MGO Control Panel in I/O Mode – Clock Settings

DiGiGrid MGO Control Panel – Clock Settings

DiGiGrid MGO Control Panel in I/O Mode – DigiLink Port 1 Settings

DiGiGrid MGO Control Panel – MADI Port Settings
