Musical. Powerful. Portable.

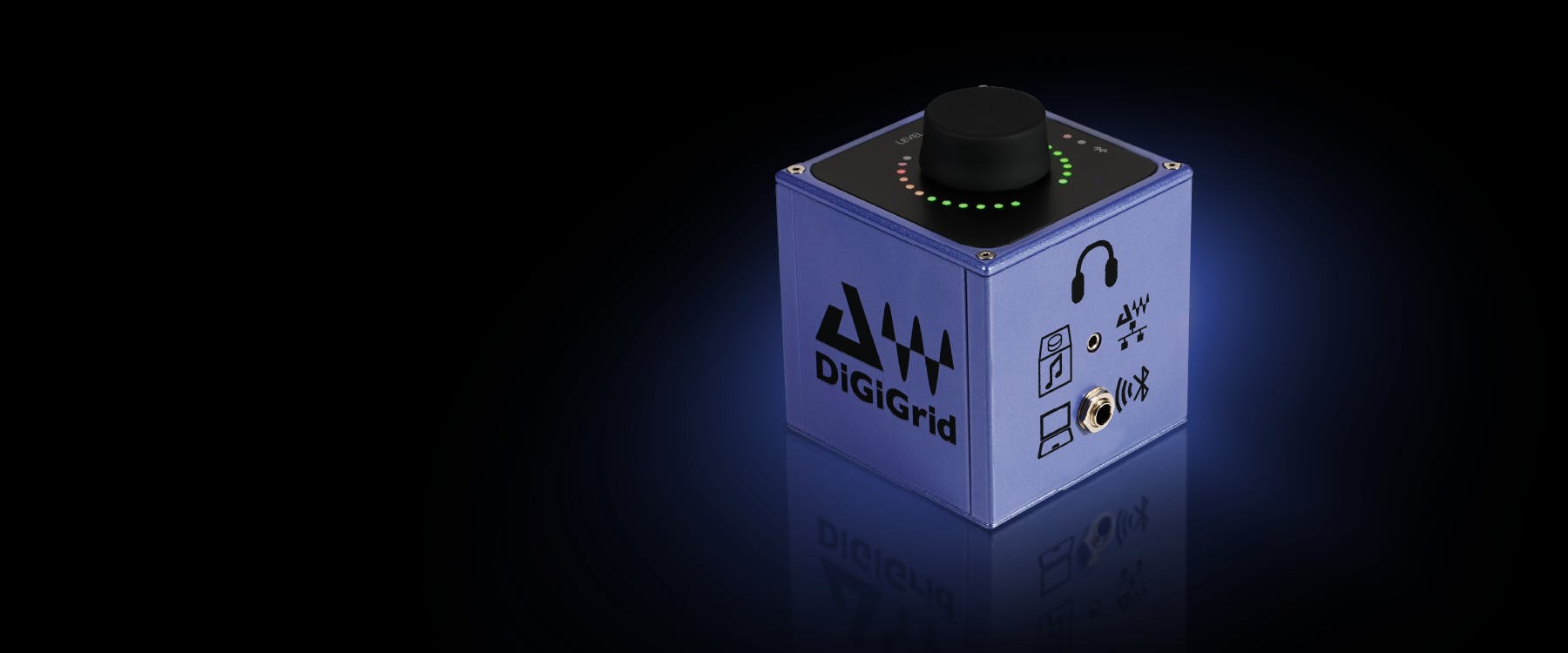

The Audio Interface for Musicians

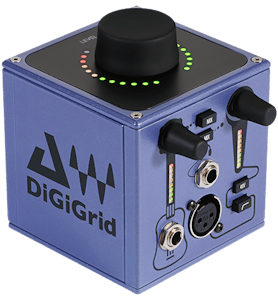

Perfect for use at home, in the studio, or in any musical environment, this compact unit is super-easy to use: just plug and play, with simultaneous monitoring and recording capabilities through mic/line and instrument/line inputs, complemented by a high-power headphone amp for playback.
With +48V phantom power, superb preamps, 96 kHz converters, and switchable high-pass filter, DigiGrid M is ideal for vocals—and SoundGrid compatibility gives endless expansion possibilities.
Support
Important notes:
Mic Input
Input Impedance: 1K5Ω
Gain Range: 0 to +70 dB
Frequency Response: -3 dB <10 hz to 100 khz
(Analog to Analog)
Harmonic Distortion: 0.005% (40 dB Gain)
Noise EIN: Typically -127 dB (70 dB Gain)
High Pass Filter: -3 dB 100 Hz 18 dB/Octave
Line Input
Input Impedance: 1MΩ
Gain Range: +6 to +30 dB
Frequency Response: -3 dB <10 hz to 100 khz
(Analog to Analog)
Harmonic Distortion: 0.005%
Noise
Min Gain -82 dBu
Max Gain -73 dBu
Headphones
Gain Range Infinity: To +10 dB
Max Output Level:
Load RMS
16Ω 2.3V
32Ω 3.7V
100Ω 6.0V
200Ω 7.5V
600Ω 8.8V
Dimensions
Width: 9 cm / 3.54 inches
Height: 11.35 cm / 4.46 inches
Depth: 9 cm / 3.54 inches
Device Weight: 0.7 kg / 1.54 lbs
Package Weight: 1.81 kg / 4 lbs
